AMOZzPLAYER wins Auchan in Kyiv

Ukraine

We are happy to inform that our partner distributor of the AMOZzPLAYER software company Sound House Pro has signed a contract for design, supply, and installation of a multi-zone background music system with the Ukrainian branch of the company ‘Auchan Holding SA’.

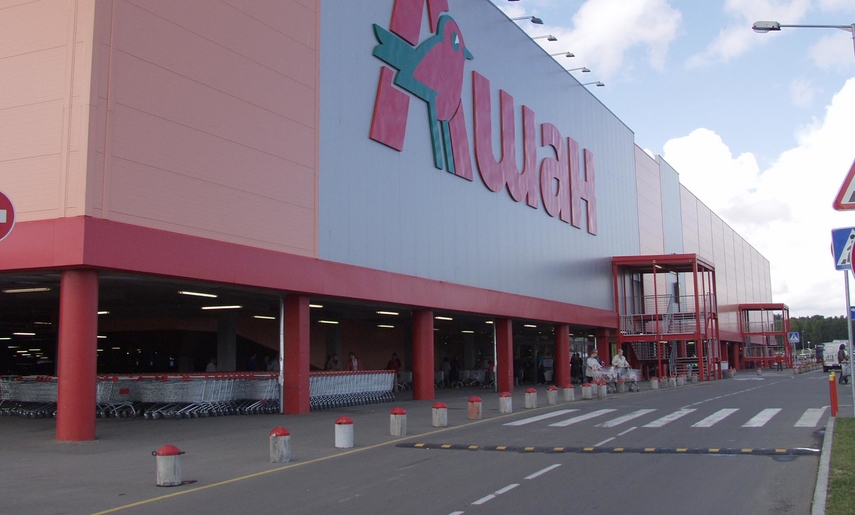

‘Auchan Holding SA’ is the French corporation with an over 50 years of history that owns a global network of super markets and hypermarkets. It is the 11th company in the world in the retail distribution of groceries and we are proud that it has chosen cooperation with AMOZzPLAYER in its projects in Ukraine.

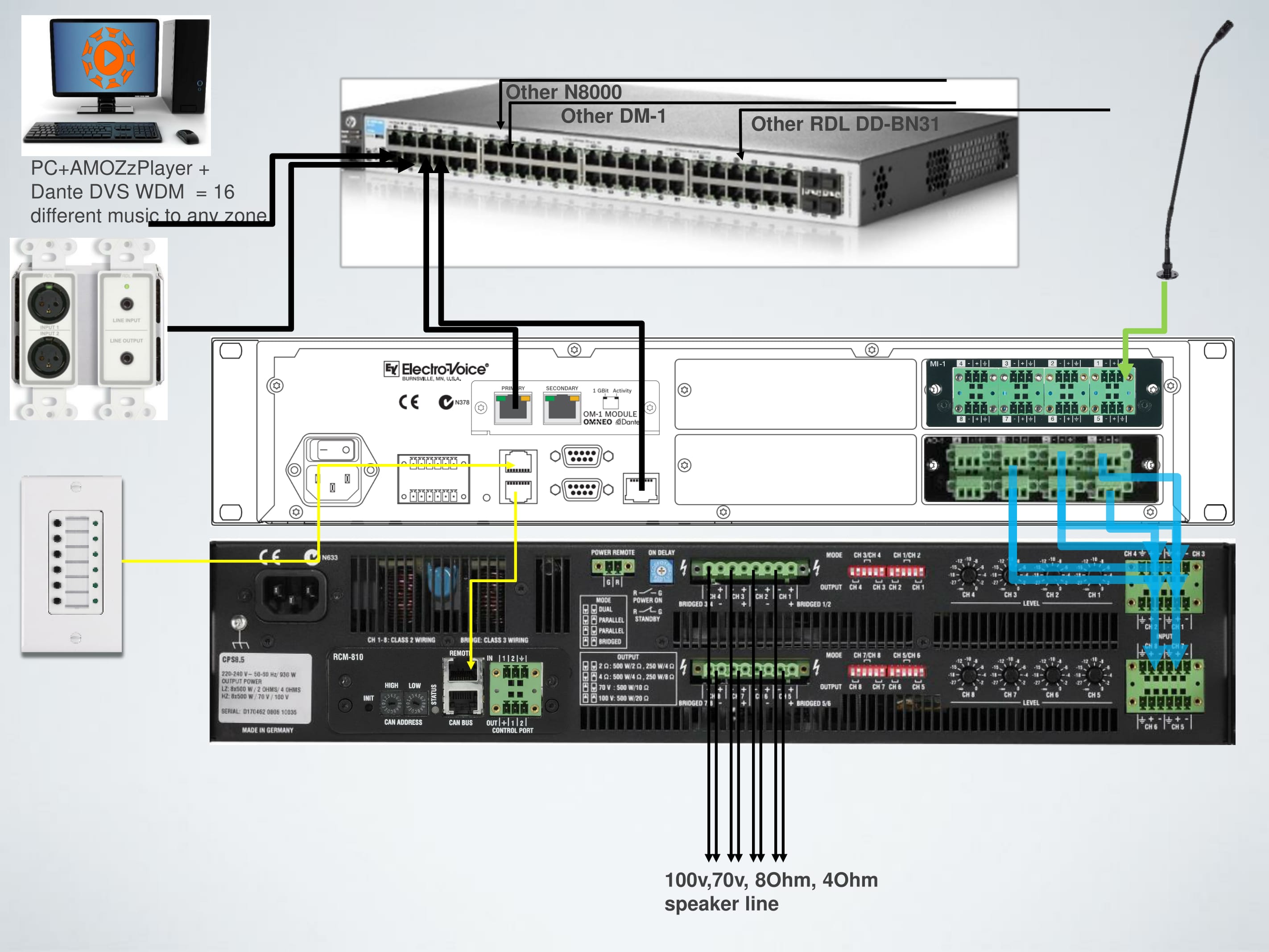

The system configuration offered by SoundHouse is very simple and works as follows:

After internal routing and processing the audio is directed through the N8000 output module AO-1 http://electrovoice.com.ua/ao-1 to multichannel power amplifiers Electro-Voice CPS8.5 with remote control and monitoring cards RCM810 and the amplified signal goes to the loudspeaker lines in corresponding zones of the trade center. If there is a need to use a local signal source (some hardware player or a microphone) in certain zone there is a Dante connection panel RDL DD-BN31 that accepts line or microphone signal and transfers it from any zone to the N8000 OM-1 module or directly to the AMOZzPLAYER as an AUX signal from an external player. the AMOZzPLAYER feeds the prearranged audio streams through the Dante Virtual Soundcard (DVS) software, (both are installed on the system PC) to the Dante input interface OM-1 of the network processor Electro-Voice N8000 over the trade center’s Ethernet network.

After internal routing and processing the audio is directed through the N8000 output module AO-1 to multichannel power amplifiers Electro-Voice CPS8.5 with remote control and monitoring cards RCM 810 and the amplified signal goes to the loudspeaker lines in corresponding zones of the trade center. If there is a need to use a local signal source (some hardware player or a microphone) in certain zone there is a Dante connection panel RDL DD-BN31 that accepts line or microphone signal and transfers it from any zone to the N8000 OM-1 module or directly to the AMOZzPLAYER as an AUX signal from an external player.

In this project, the AMOZzPLAYER allows automatization of a huge amount of audio content into a specified number of zones with scheduled actions like: • Switching ON/OFF of each zone • Changing level in each zone • Playback of prearranged playlists (both background music and commercials) and spoken messages Another advantage of AMOZzPLAYER is its web-based control interface for remote control inside the local network and over Internet using VPN, RemoteDesktop or TeamViewer from any part of the world and from nearly any device. The offered system solution is inherently reliable thanks to the used hardware but the benefit is that all the component of the system are distributed by SoundHouse. This means that technical support and service will be executed in shortest terms and at highest level. “Alongside with our offer with Electro-Voice products and AMOZzPLAYER there were several other offers with systems of other manufacturers. Nevertheless, thanks to AMOZzPLAYER we were the only system integrator who has offered a complete system solution with a simple yet powerful and comfortable automatization and remote control of the whole system from literally any point of the trade center. Our system is also future-proof thanks to nearly infinite extension possibilities of the system without significant investments in hardware and cabling… And apart from all other benefits, our solution was the simplest one!”

The benefits of the system solution from SoundHouse with AMOZzPLAYER software, Electro-Voice and RDL hardware are:

- Infinite number of zones
- Simple configuration
- Minimum of equipment – one PC, one power amplifier, one network controller and loudspeakers and interfaces to arrange 8 zones
- Simple extension of the system – with an addition of an RDL interface at any place of the network to send and receive audio streams. So with an arrangement of further zones, there should be only added a corresponding number of loudspeaker lines and power amplifiers.

In this project, the AMOZzPLAYER allows automatization of a huge amount of audio content into a specified number of zones with scheduled actions like:

- Switching ON/OFF of each zone
- Changing level in each zone
- Playback of prearranged playlists (both background music and commercials) and spoken messages

Another advantage of AMOZzPLAYER is its web-based control interface for remote control inside the local network and over Internet using VPN, RemoteDesktop or TeamViewer from any part of the world and from nearly any device.

The offered system solution is inherently reliable thanks to the used hardware but the benefit is that all the component of the system are distributed by SoundHouse. This means that technical support and service will be executed in shortest terms and at highest level.


Andrey Garkaviy, Director of SoundHouse PRO company
